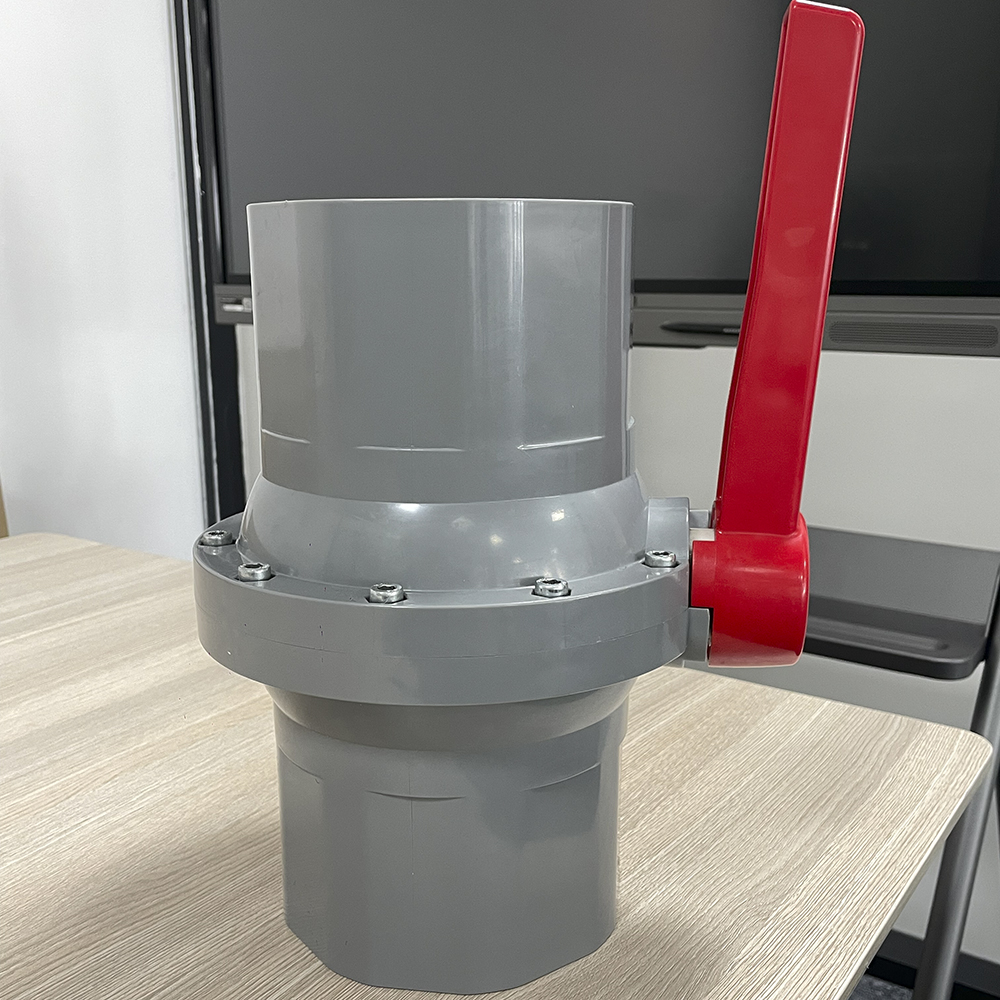

OEM Tayada Sare140MM 160MM 168MM 200MM Birta Aan Aan Lahayn UPVC Weynaanta Kubbada Kubada ee Mashruuca DN200

Sharaxaad Gaaban:

Waalka kubbadda
1. Midabada jilicsan & Naqshad is haysta
2.Hawlgalka leakproff;
3.Light iyo union dhamaadka samaynta rakibo fudud
4.Economic sida kharashka gaadiidka ka jaban & nolosha dheer ee shaqada
5.Well iyo xakamaynta tayada sare leh
6. Deegaanka saaxiibtinimo, aan sun ahayn
7.Weathering & Abrasion caabbinta & caabbinta kiimikada heer sare ah
8.Widely loo isticmaalo dhismaha, waraabka, warshadaha iyo barkadda dabaasha
9.Amar yar oo la aqbali karo
10.Customer's design & logo waa la soo dhaweynayaa


  • Cabbirka:140MM 160MM 168MM 200MM
  • Dhamaadka wadajirka ah:ASTM BS DIN ISO JIS
  • Cadaadiska Shaqada:PN16
  • Faahfaahinta Alaabta

    FAQ

    Tags Product

    Halyeyga iyo khariidad jireed

    singleproducimg

    Walxaha ka kooban

    qeexidda walxaha

    MAYA Qayb Qalab QTY
    1 JIRKA UPVC, CPVC 1
    2 STEM O-ring EPDM,FPM(NBR) 1
    3 TIRADA UPVC, CPVC 1
    4 KUBADDA UPVC, CPVC 1
    5 SHABADDA KURSIGA TPE, TPVC, TPO 2
    6 CAP PVC, ABS 1
    7 MAAMUL PVC, ABS 1
    8 SCREW SS304,STEEL 1



    Miiska isbarbardhigga cabbirka cabbirka

    QAYBKA Unug
    MOODEL DN 15 20 25 32 40 50 65 80 100
    QAYBKA 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" Inji
    thd./in NPT 14 14 11.5 11.5 11.5 11.5 8 8 8 mm
    BSPT 14 14 11 11 11 11 11 11 11 mm
    JIS I 20 20 24 26 30 31 45 48 53 mm
    d1 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7 mm
    d2 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.98 mm
    ANSI I 18 20 24 26 30 31 45 48 53 mm
    d1 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.76 mm
    d2 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.07 mm
    DIN I 18 20 24 26 30 31 45 48 53 mm
    d1 20.3 25.3 32.3 40.3 50.3 63.3 75.3 90.3 110.4 mm
    d2 20 25 32 40 50 63 75 90 110 mm
    d 15 19 24 30 34 45 55 70 85 mm
    H 37 55 66 73 81 91 99 121 134 mm
    A 68 80 94 100 110 136 170 210 236 mm
    L 77 91 103 111 123 146 178 210 255 mm
    D 32 37.5 44 52 60 74 93 110 135 mm
