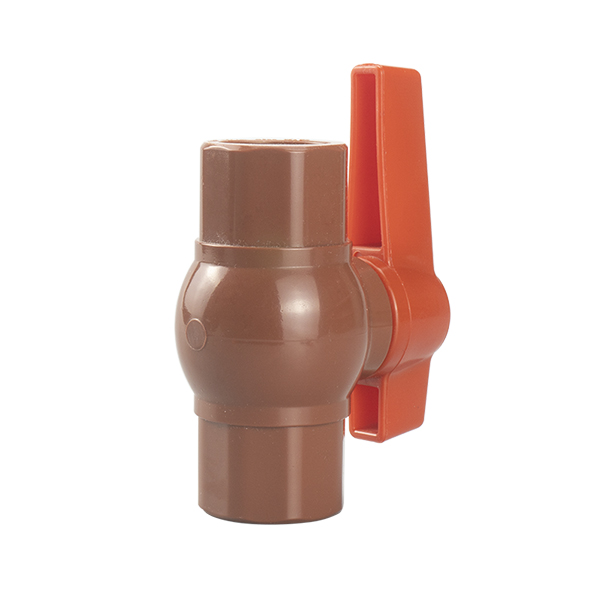

China Plastic Valves Warshada Pntek Compact Ball Valve PVC Cadaadis Dhimista Warshada Valve iyo soo saarayaasha

Wershada Valves-ka caaga ah ee Pntek Kubadda Is haysta ee Valve PVC Cadaadis Yaraynta Valve

Wershada Valves-ka caaga ah ee Pntek Kubadda Is haysta Valve PVC Cadaadis Yaraynta Valve ee Sawirka leh

Sharaxaad Gaaban:

$0.10 - $8.00/Qeyb|2000 Qaybaha/Qeybaha (Dalab yar)
Cabbirka:
1/2in3/4IN1in1 1/4in1 1/2in2in2 1/2in3in4in5in6in8in
Qalabka:
Caag caag ah
Cadaadis:
Cadaadis dhexdhexaad ah 8-16kgs
Tusaalooyinka:
5in , caag ah, 8-16kgs
$ 0.20 / Qayb | 1 Qayb (Min. Dalabka) | Iibso Tusaalooyinka
Waqtiga Hogaaminta:
Tirada (Qaybaha) 1 - 20>20
Est. Waqtiga (maalmo) 10 In laga xaajoodo
Habaynta:
Summada la habeeyey (Min. Dalabka: 2000 Qaybood)
Baakadaha la habeeyey (Dalab ugu yar: 2000 qaybood)
Rarida:
Taageerida xamuulka badda

Nooca::TALOOYINKA KUBADDA

Taageero la habeeyey::OEM, ODM

Heerkulka Warbaahinta::Heerkul dhexdhexaad ah, Heerkul caadi ah

Email noogu soo dir

Faahfaahinta Alaabta

FAQ

Tags Product

Halyeyga iyo khariidad jireed

singleproducimg

Walxaha ka kooban

qeexidda walxaha

MAYA	Qayb	Qalab	QTY
1	JIRKA	UPVC, CPVC	1
2	STEM O-ring	EPDM,FPM(NBR)	1
3	TIRADA	UPVC, CPVC	1
4	KUBADDA	UPVC, CPVC	1
5	SHABADDA KURSIGA	TPE, TPVC, TPO	2
6	CAP	PVC, ABS	1
7	MAAMUL	PVC, ABS	1
8	SCREW	SS304,STEEL	1

Miiska isbarbardhigga cabbirka cabbirka

QAYBKA												Unug
MOODEL	DN		15	20	25	32	40	50	65	80	100
	QAYBKA		1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	Inji
	thd./in	NPT	14	14	11.5	11.5	11.5	11.5	8	8	8	mm
	thd./in	BSPT	14	14	11	11	11	11	11	11	11	mm
	JIS	I	20	20	24	26	30	31	45	48	53	mm
		d1	22.3	26.3	32.33	38.43	48.46	60.56	76.6	89.6	114.7	mm
		d2	21.7	25.7	31.67	37.57	47.54	59.44	75.87	88.83	113.98	mm
	ANSI	I	18	20	24	26	30	31	45	48	53	mm
		d1	21.54	26.87	33.65	42.42	48.56	60.63	73.38	89.31	114.76	mm
		d2	21.23	26.57	33.27	42.04	48.11	60.17	72.85	88.7	114.07	mm
	DIN	I	18	20	24	26	30	31	45	48	53	mm
		d1	20.3	25.3	32.3	40.3	50.3	63.3	75.3	90.3	110.4	mm
		d2	20	25	32	40	50	63	75	90	110	mm
	d		15	19	24	30	34	45	55	70	85	mm
	H		37	55	66	73	81	91	99	121	134	mm
	A		68	80	94	100	110	136	170	210	236	mm
	L		77	91	103	111	123	146	178	210	255	mm
	D		32	37.5	44	52	60	74	93	110	135	mm
